Monitor Huawei Cloud with Site24x7

Monitor your Huawei Cloud infrastructure with Site24x7 to achieve comprehensive visibility into the health, availability, and performance of your Huawei Cloud resources.

Discover services, configure thresholds, receive alerts, and automate incident remediation in a unified monitoring console.

Use cases

Here are some use cases for Huawei Cloud monitoring:

Global and region-specific cloud operations: Monitor all Huawei Cloud workloads from a single platform. Meet compliance and latency requirements with region-specific infrastructure.
Large-scale infrastructure monitoring: Track health and performance of 30+ Huawei Cloud resource types and receive proactive alerts to prevent service disruptions.
Capacity planning and performance forecasting: Analyze long-term trends in compute, storage, and networking. Forecast growth, optimize resources, and prevent capacity bottlenecks before you breach SLAs.

Benefits of Huawei Cloud monitoring

With Huawei Cloud monitoring, you can leverage the following benefits:

Automatic resource discovery: Automatically discover Huawei Cloud resources after account integration. Monitor inventories accurately as infrastructure scales and changes.
Real-time infrastructure visibility: View resource health and operations instantly on centralized dashboards with clear, color-coded status indicators.
Faster incident detection and remediation: Set threshold alerts and IT Automation rules to detect issues early, notify the relevant teams, and resolve problems before users are affected, reducing mean time to resolution.

Prerequisites

Before adding a Huawei Cloud monitor, complete the following prerequisites:

In your Huawei Cloud account, create credentials with read-only permissions to authenticate with Site24x7.
Assign the required read-only policies to the IAM user.
In the Site24x7 console, enter your Huawei Cloud account credentials to establish the connection and start resource discovery.

Add a Huawei Cloud monitor

Gain visibility into resource health, performance trends, and availability across your cloud environment by adding a Huawei Cloud monitor.

Supported Huawei Cloud services

Site24x7 supports out-of-the-box monitoring for various Huawei Cloud services. Newly supported services are automatically discovered and added based on your selected discovery interval.

Authentication and resource discovery

Key-based authentication

Site24x7 uses an access key to authenticate with your Huawei Cloud account. Your credentials are securely stored and encrypted for your protection.

Discovery interval

The Discovery Interval defines how frequently Site24x7 checks for newly added or removed services in your Huawei Cloud account. Available options include:

15 minutes
30 minutes
One hour

Select a frequency that aligns with the rate of change in your infrastructure.

Dashboards

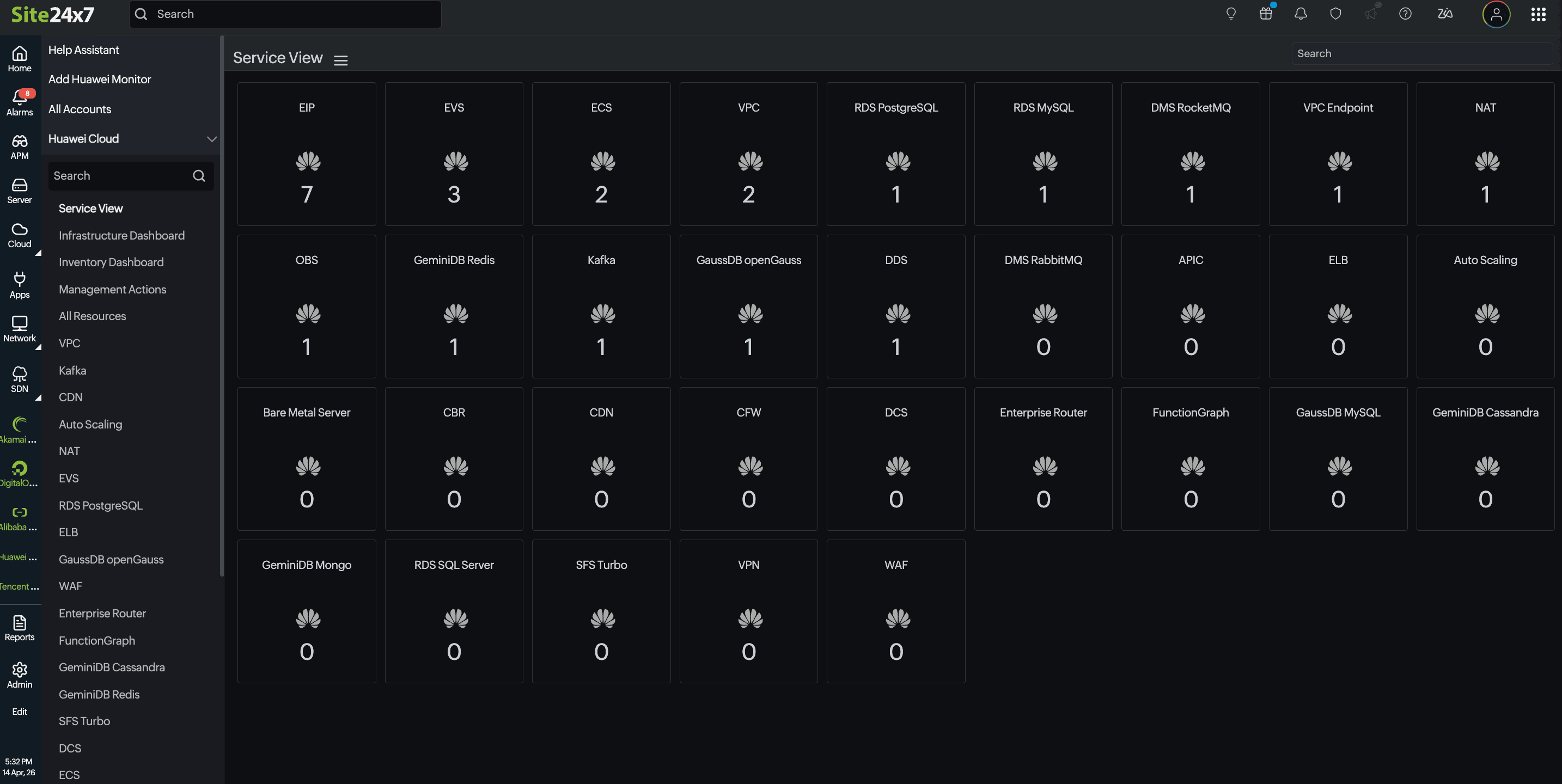

Once the Huawei Cloud monitor is successfully configured, the Service View page displayed, showing all monitored Huawei Cloud resources.

In addition to this Service View dashboard, three additional dashboards are available to provide deeper visibility into your environment:

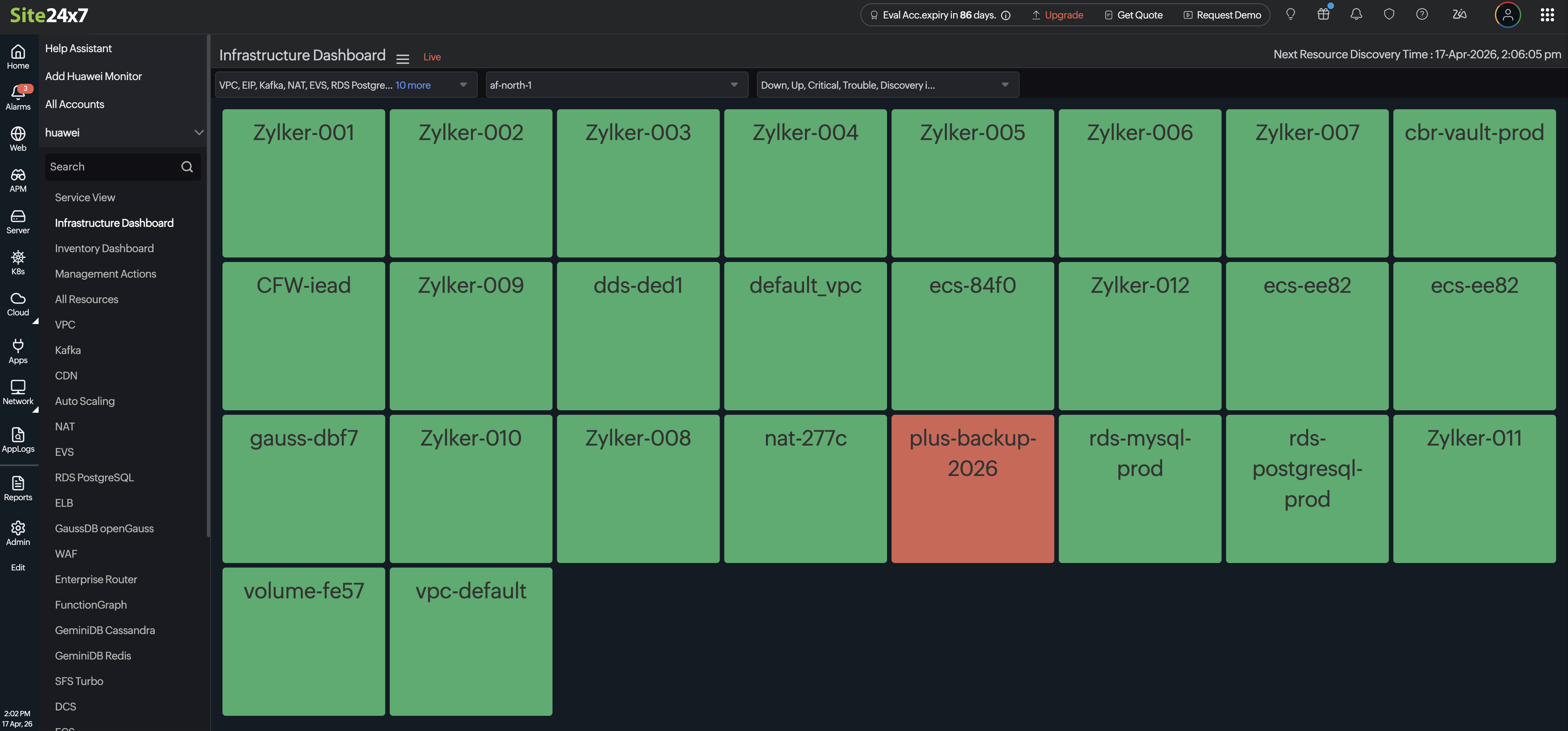

Infrastructure Dashboard provides a live, color-coded NOC view of all your monitored resources. Each tile reflects the current health status of a resource (green for up, orange for alerts, red for down) with a simple at-a-glance picture of your entire infrastructure and making it easy to spot issues at a moment's notice.

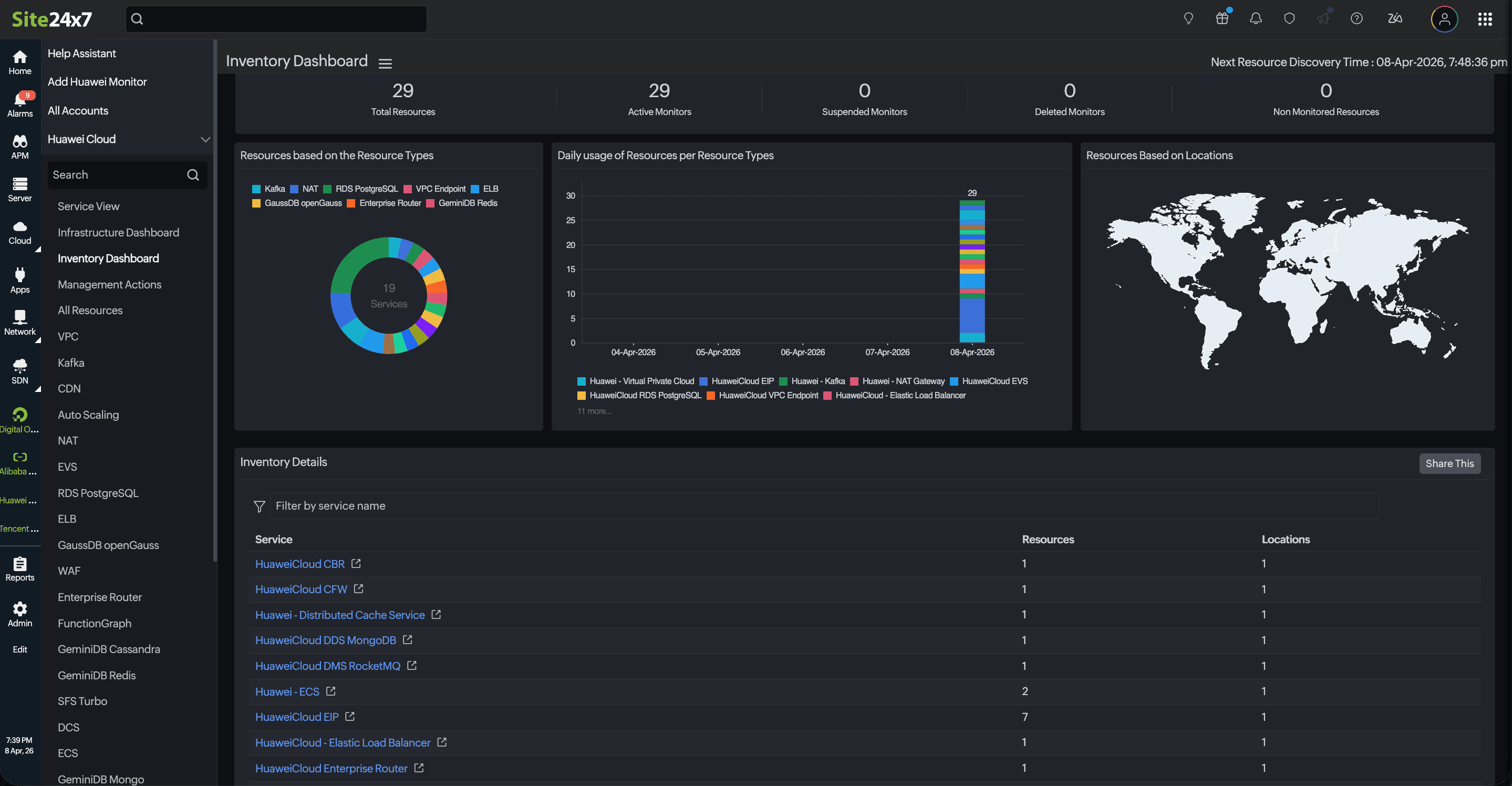

Inventory Dashboard gives you a consolidated summary of all resources across service types and regions. It shows total resource counts, active monitors, and usage trends over time through interactive charts, along with a geographic map of where your resources are deployed.

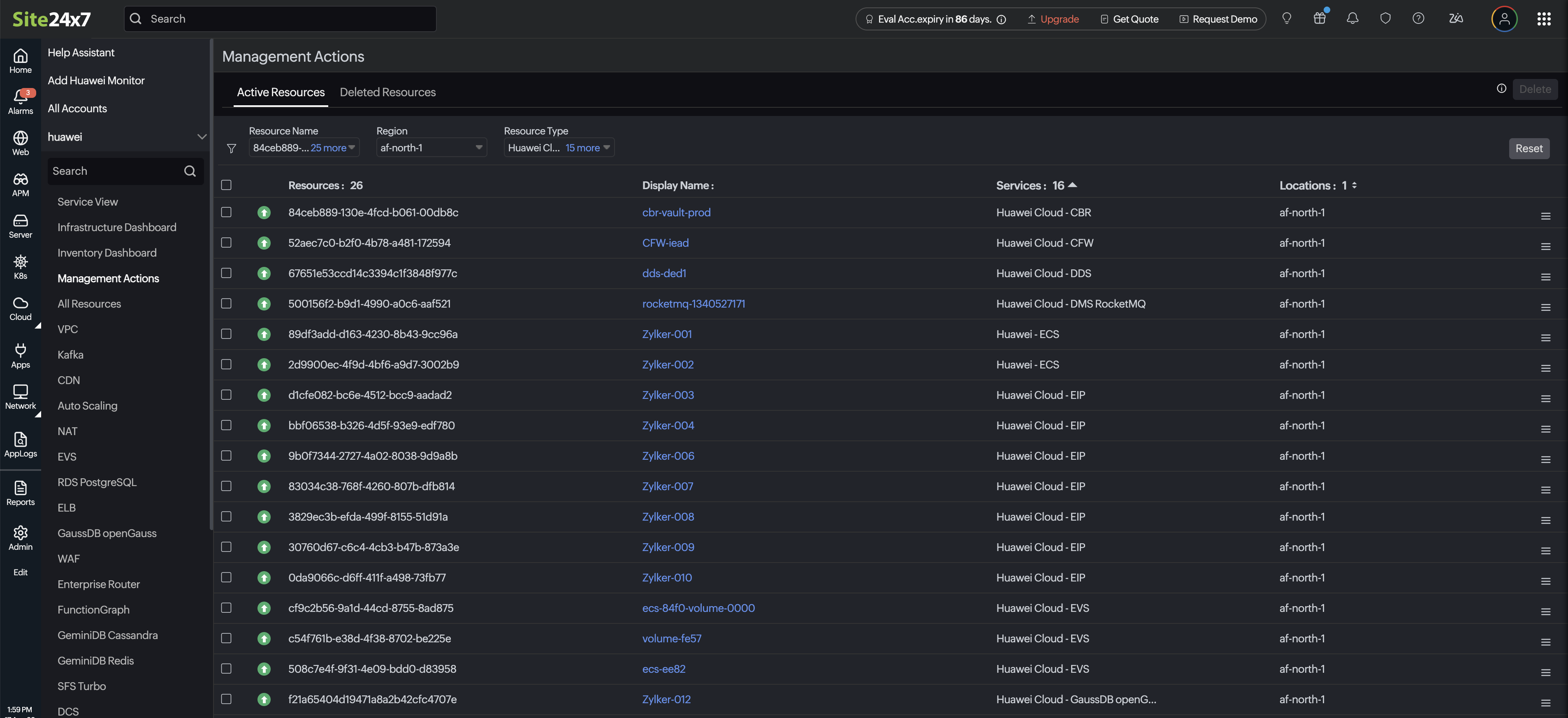

Management Actions lets you manage the life cycle of your monitored resources. Active Resources displays a comprehensive overview of all actively monitored resources associated with Huawei Cloud.

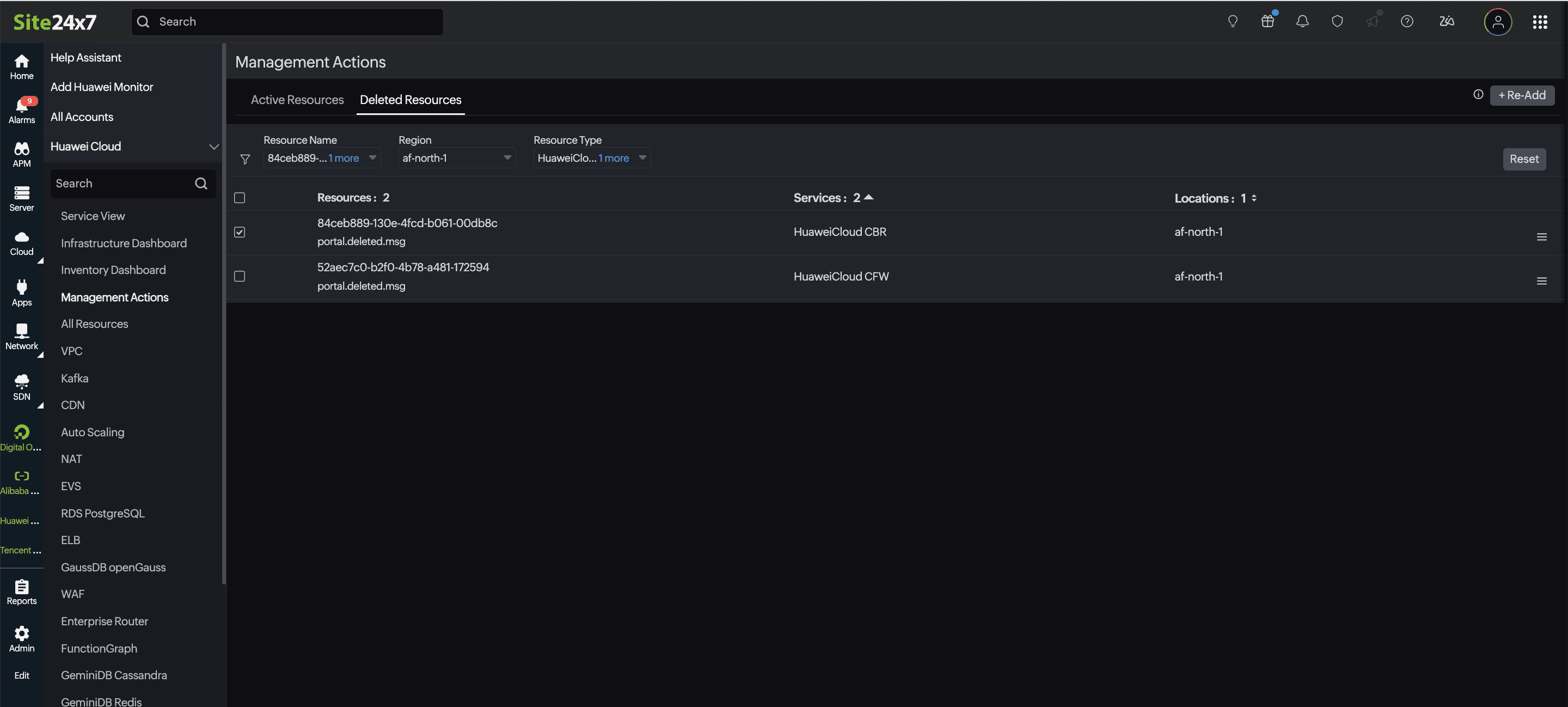

- If there are resources that are no longer needed for tracking, select the resource and click Delete to remove from active monitoring. When a resource is removed, it is not permanently deleted. Instead, it is moved to Deleted Resources.
- This ensures you can keep a record of previously monitored resources for future reference. To restore a resource, click Re-Add.

In addition to these dashboards, you can build custom dashboards tailored to your team's specific needs, execute management actions, and identify critical anomalies.

Monitoring configuration

Threshold and availability

Establish custom threshold profiles for each service to proactively identify performance issues and outages.

IT automation templates

Site24x7 empowers you to automate corrective measures when a monitor enters a trouble or down state. Possible actions include:

Restarting a resource
Executing a custom script or webhook
Stopping/starting ECS instances

Execution settings: Select when to execute the action from the Execution Settings drop-down menu. Available options include: Execute on Down, Execute on Critical, Execute on Trouble, Execute on Up, Execute on any attribute status change, or Execute on any status change.
